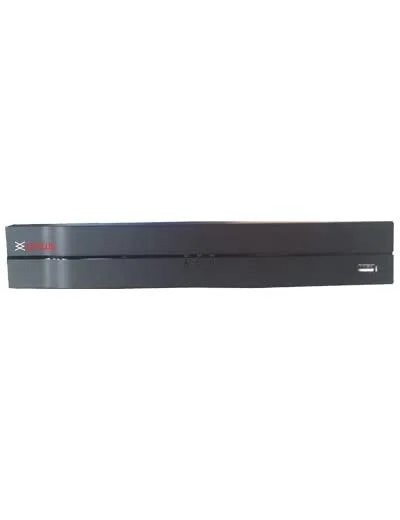

The CP Plus CP-UNR-104F1 DVR, featuring a 4 channel IP camera input, 8MP resolution playback, and an Instastream/H.265 codec decoder for improved performance, is a great addition to any security system. It has support for 1 SATA HDD up to 8TB, 2 USB ports and 1 (VGA/HDMI) outputs with video resolutions up to 1080P. With multi-brand camera acceptance, multi-brand ONVIF compatibility, and multi-brand mobile apps (iCMOB/gCMOB) it ensures continuous monitoring. Shop now at Radiumbox at the lowest price in India, with free shipping and COD available. Contact us at +91-8434384343 or email [email protected] for assistance!
Brand Name
Models:
Quantity:
Total Price:
₹ 4390.00
EMIs Available On min. Purchase of Rs. 3000 across banks
Description
Technical Specification
Hardware Specification
Faq's
The new CP Plus CP-UNR-104F1 DVR, available from the Radiumbox official website, also allows for continuous and seamless video monitoring. This DVR was designed and constructed to be dependable. It features an embedded Linux operating system (OS) and an embedded bipole processor that provide excellent performance. It can accept a 4-channel IP camera input and is designed to offer all-in-one surveillance applications.
This DVR provides high video rendering smoothness and effective compression by utilizing Instastream, H.265, Smart H. 264+, and H. 264 codec decoding. Take advantage of real-time, crystal-clear video output with up to 8MP quality (including previews and playback) and all recorded data. With a maximum network throughput of 80 Mbps, the system allows for nearly any transfer speed because it is latency-free.
By using the CP Plus CP-UNR-104F1, 1 SATA HDD sized up to 8TB can be used for high capacity storage and ensuring that critical recordings never run out of space is guaranteed. It also has 2 USB ports (USB 2.0) for ease of connection and data transfer. Simultaneous video output to the VGA/HDMI port at 1080P resolution is implemented and fits most kind of display devices.
This DVR supports multi-brand network cameras, and is ONVIF compliant in order that devices can be accessed to a wide range of compatibility. The advantage is another convenience that it provides the mobile application (iCMOB and gCMOB) for the field monitoring, and control software (CMS) centrally monitoring softwares (KVMS Pro).
No matter if you are looking for an efficient surveillance in your house or business, this DVR does it all. Expert customer dedication lends to unsurpassed expert help with Radiumbox. Buy it right now on Radiumbox at the lowest price in India, with free shipping and COD available. Please contact us for help/any query at +91-8434384343 or [email protected].
Product
Brand: CP Plus
Model: CP-UNR-104F1
Type: DVR
Warranty: 1 Year
Processor and Operating System
Processor: Industrial-grade embedded processor
Operating System: Embedded LINUX
User Interface: Web/local GUI
Video Features
Video Output: 1 VGA/1 HDMI (simultaneous video output), maximum resolution 1080P
Video Resolution: 8MP, 5MP, 4MP, 3MP, 1080P, 720P, D1, CIF
Video Recording:
80 Mbps for access
80 Mbps for storage
60 Mbps for forwarding
Video Display Split: 1/4
Motion Detection: Supported
Video Loss: Supported
Storage and Backup
Hard Disk: 1 SATA 2.0, up to 8TB
Recording Modes:
Manual recording
Alarm recording
Motion detection recording
Timed recording
Backup Mode: USB device
Playback Features
Playback Options: Play, pause, stop, fast forward, fast backward, rewind, play by frame, full screen, backup (cut/file), partially enlarge, audio on/off
Network and Connectivity
Ethernet: 1 RJ-45 port (10/100 Mbps)
Protocols Supported: HTTP, HTTPS, TCP/IP, IPv4, IPv6, RTSP, UDP, NTP, DHCP, DNS, P2P, ONVIF (profile T, profile S, profile G), RTSP, CGI, SDK
Interface Ports
USB Ports: 2 (1 rear USB 2.0, 1 front USB 2.0)
Power and Consumption
Power Supply: DC 12V, 1.5A
Power Consumption: <10W (without HDD)
Environmental and Physical Features
Working Temperature: -10°C to 45°C (+34°F to +113°F)
Dimensions (W × L × H): 260 mm × 225 mm × 47.6 mm
Weight: 0.81 kg (without HDD)
Additional Features
Smartphone Compatibility: iPhone, iPad, Android Phone
High Resolution Support: It goes along with 8-MP resolution; thus high-quality video preview and playback is present.
High Frequency availability: With up to 80 Mbps of network bandwidth, the DVR/NVR would be able to ensure fluent video stream and recording.
High Storage Capacity: It has a Storage capacity of up to 8 TB of SATA HDD.
Versatile connectivity: 2 USB ports (USB2.0) ensure the channel of additional flexibility.
Multiple Video Outputs: Provides simultaneous HDMI and VGA video outputs, whereas HDMI monitoring maxes out at 1080P.
Wide camera compatibility: A wide array of network cameras are supported.
ONVIF Conformant: Quick and easily installs with all ONVIF-compliant network cameras!
Mobile and CMS Software: It is packed with mobile applications - iCMOB and gCMOB; and CSM Software - KVMS Pro-to remotely view and manage.
