Green bit dactyscan 84c

(2 reviews)
In stock

Sold by:
Radium Box
Green Bit

Price:
₹30,999 /Pc

Quantity:
(In Stock )

Total Price:

Green bit dactyscan 84c - Biometric Devices - Green Bit

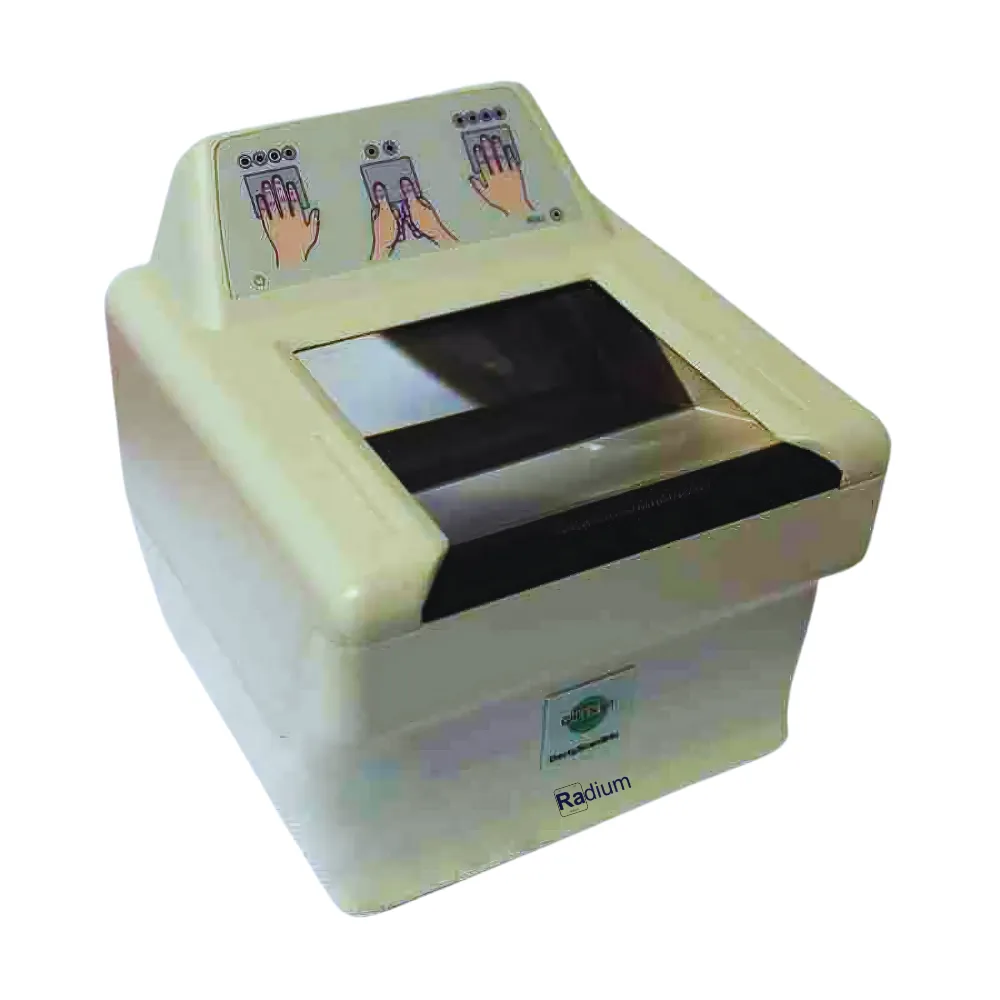

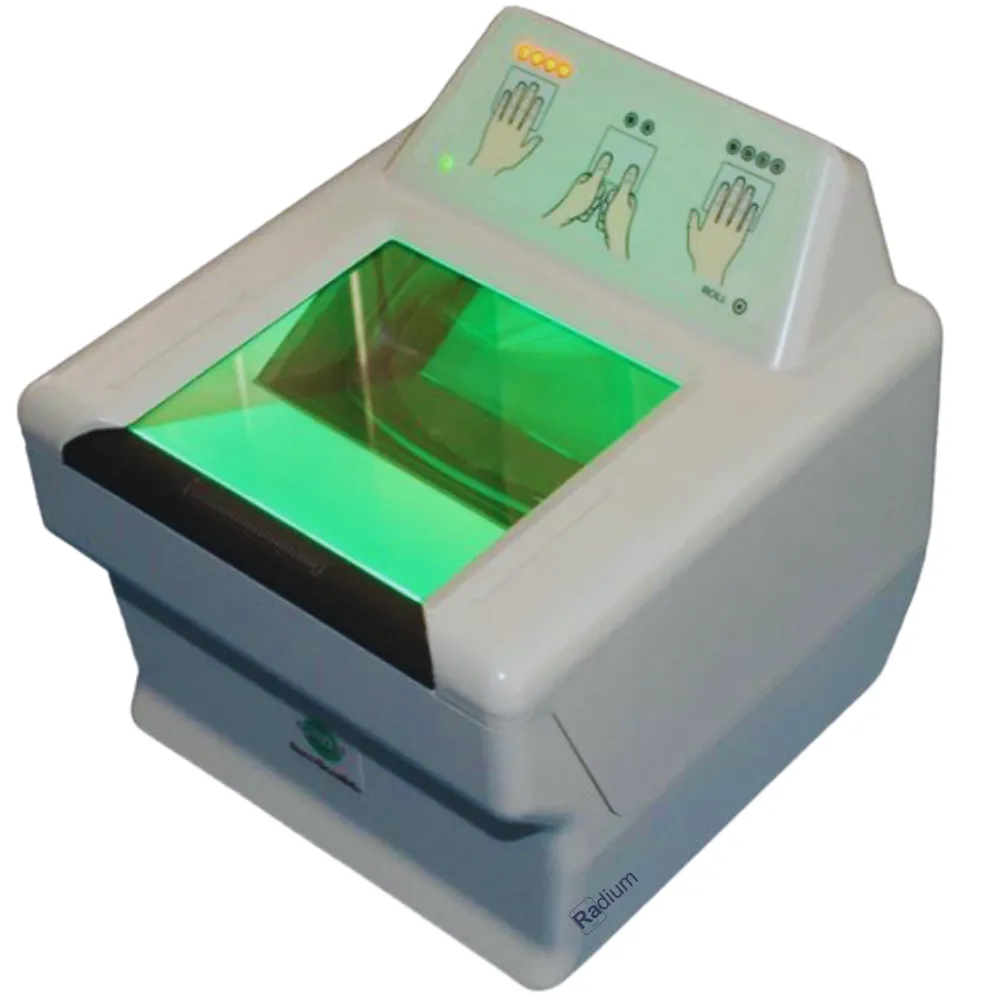

DactyScan84c from Green Bit is an optical live fingerprint reader with large platen. The reader is capable to capture 4-slap and 2-thumbs fingerprints, allowing to collect all 10 fingerprints using 4+4+2 method. Also the DactyScan84c can capture single rolled and flat fingerprints.

The device is certified by FBI as compliant with FBI IAFIS IQS CJIS-RS-0010 (V7) Appendix F. Also it is compliant with ANSI/NIST-ITL-1-2007, ANSI/NIST-ITL-1-2000 and ISO/IEC 19794-4 standards.

PLATEN SCANNING WINDOW3.3' x 3.2' (86mm x 81mm)
FLAT FINGERS SCANNING AREA3.2' x 3.0'
ROLLED FINGERS SCANNING AREA1.6' x 1.5'
IMAGE SIZE1600 x 1500 pixels (SLAP) 800 x 750 pixels (ROLLED)
IMAGE QUALITY (Standards compliance)FBI IAFIS IQS App. F ANSI/NIST-ITL 1-2007/2011 ANSI/NIST-ITL 1-2000 ANSI/NIST-ITL 1-2000 Interpol Implementation ISO/IEC FCD 19794-4
IMAGE RESOLUTION500 dpi, 256 gray
ACQUISITION SPEED> 28 fps for slap (Preview mode) > 25 fps for rolled
DIMENSIONS148mm x 152mm x 120mm
WEIGHT1.4 kg
INTERFACEUSB 2.0 (Data & Power supply)
CERTIFICATIONSCE, FCC, RoHS, KCC and ISO 60950-1
LED INTERFACEYES
TEMPERATURE0°C to 50°C (Operating) -20°C to 50°C (Storage)
HUMIDITYFrom 10 to 90% (Non condensing)
IP RATINGIP54
OPERATING SYSTEMWindows, Linux, Android
MOUNTINGReady to be installed on a counter top
ANTISPOOFING (FFD/LFD)Patented GB_FFD software - Option
ADDITIONAL SOFTWAREDactyMatch SW - Option
