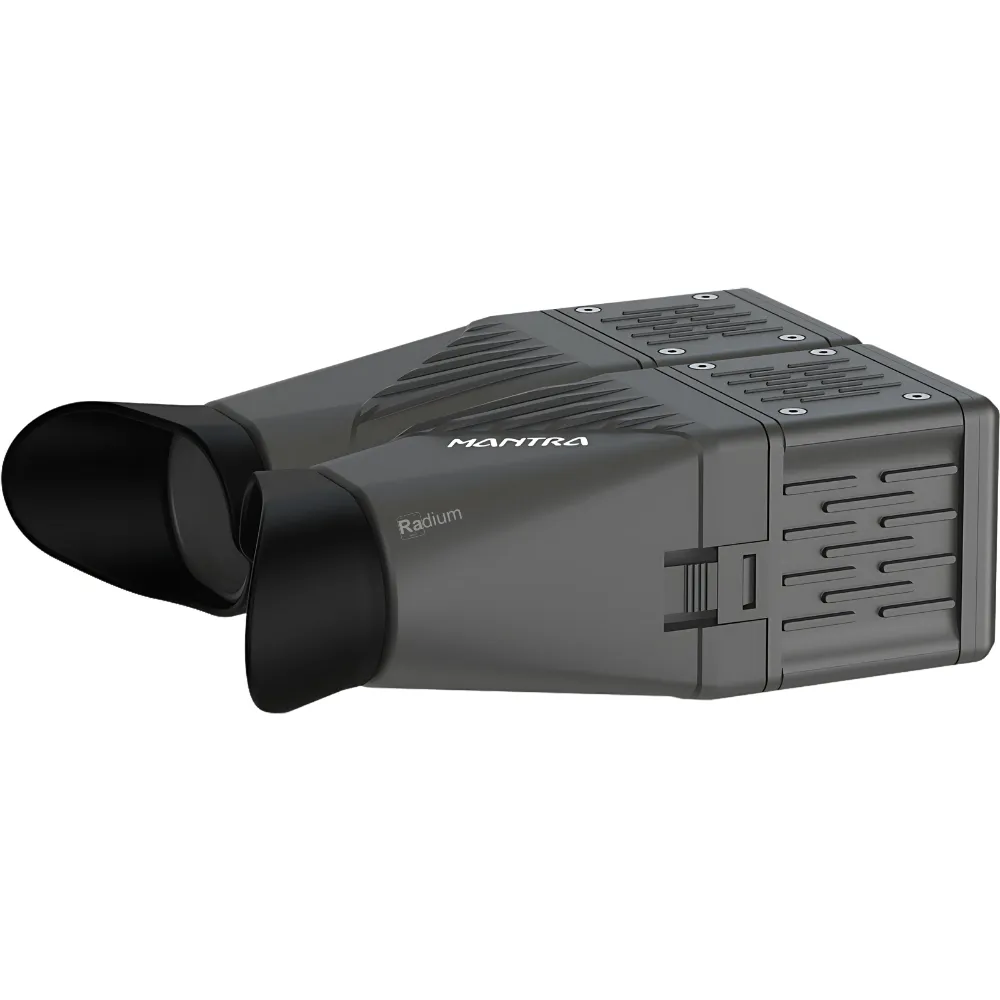

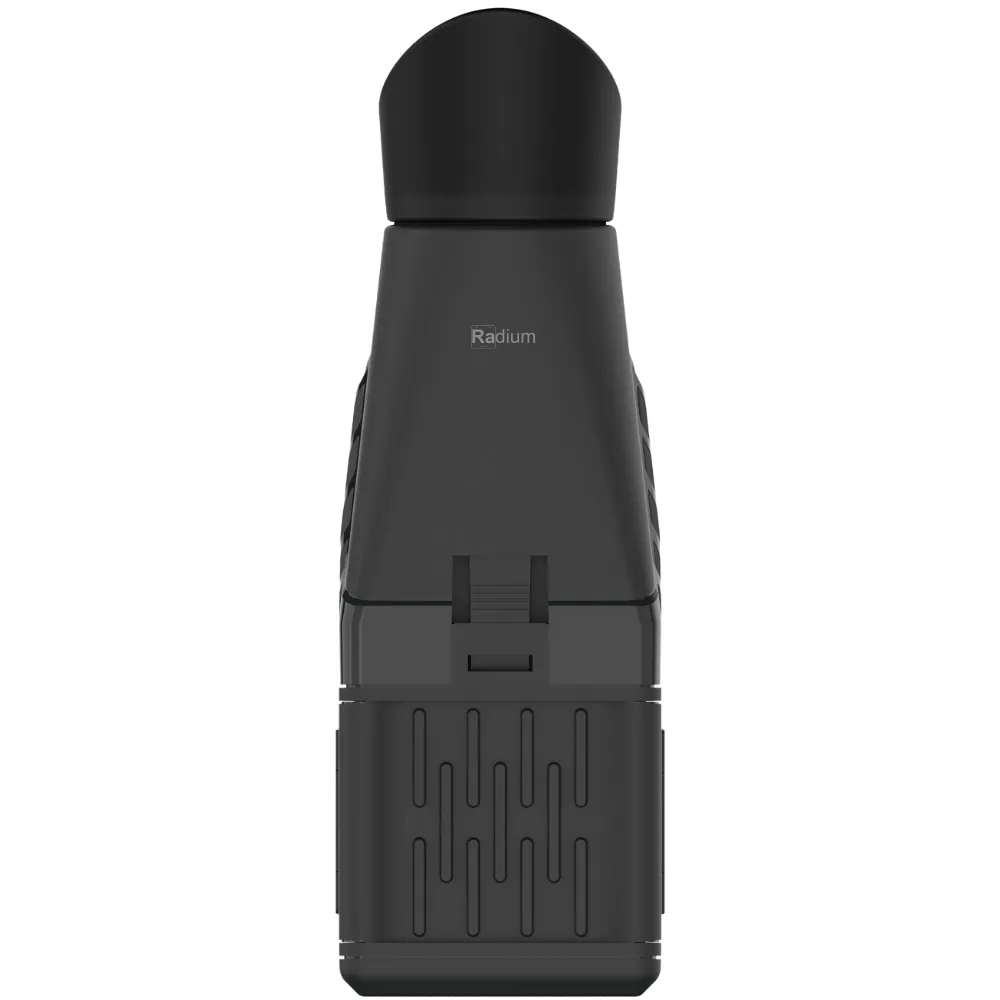

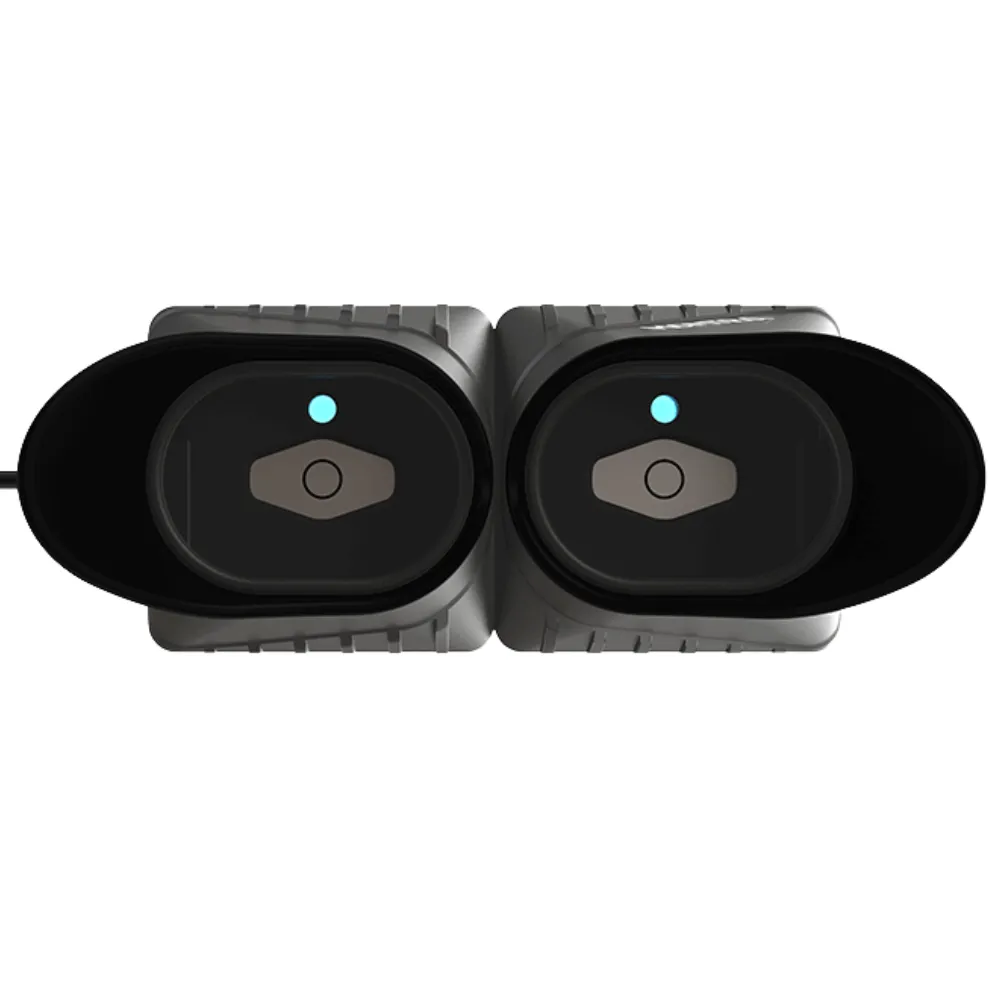

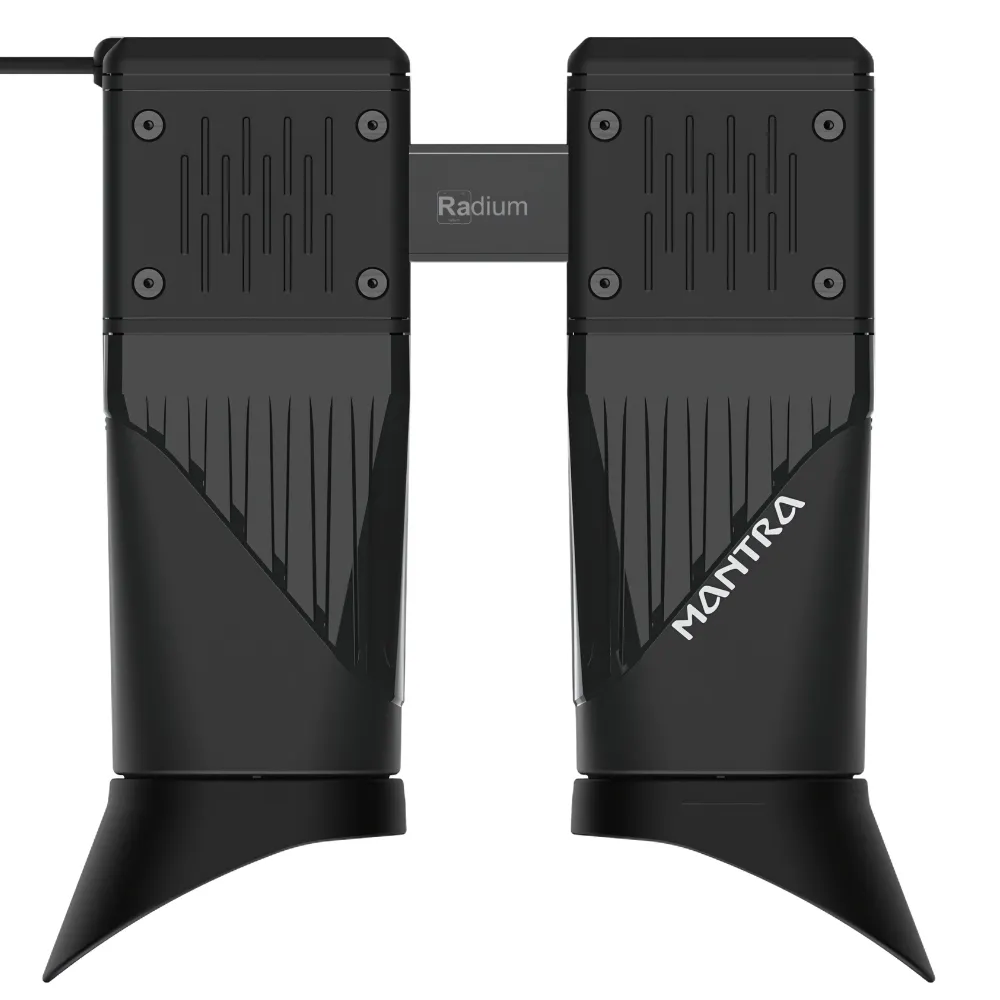

Mantra MATISX Dual IRIS Scanner - Biometric Devices - Mantra
Mantra MATISX Dual Iris Scanner can simultaneously capture both irises with more precision and greater speed. It is also durable, portable, and simple to use. Innovative twin iris scanners are ideal for a variety of biometric enrollment and identification applications since they are brimming with useful features.
The MATISX from Mantra is a dual-iris scanner that simultaneously captures images of both of a person's iris using an interpupillary adjustment and simple operation. The next-generation iris scanner device, MATISX, is built with cutting-edge biometric technology and complies with ANSI NIST and ISO image interchange standards.
The ground-breaking MATISX dual iris scanner combines ease of use with great reliability and endurance. The dual iris scanner has many attractive capabilities, including the auto capture feature for quick and simple dual iris recognition, configurable interpupillary distance range, immunity to ambient brightness, and many more.
Product Features
IRIS Sensor
Parameters | Specification |
Simultaneous Capture | : Dual IRIS Capture |
IRIS Diameter | : > 210 Pixel |
Spatial Resolution | : > 60 % @ 4.0 Lp/mm |
Pixel Resolution | : > 20 Pixel/mm |
Image Margins | : Left & Right >=0.5x IRIS Diameter Top & Bottom >=0.25x IRIS Diameter |
Pixel Depth | : 8 Bits/Pixel (256 Gray Level) |
Imaging Wavelength | : 700 - 900 nm |
Frame Rate | : >=10 Frames/Sec |
Scan Type | : Progressive |
Sensor SNR | : > 36 dB |
Capture Mode | : Auto Capture with Built-in Quality Check |
Illumination | : Near Infra Red (NIR) |
Capture Distance | : 100mm from the Front of Camera mirror |
Capture Volume (WxHxD) | : 30 x 22.5 x 15 mm |
Exposure Time | : < 33ms
|
Hardware
Parameters | Specification |
Interface | : USB2.0 High Speed (USB-IF Certified)* |
Operating Voltage | : 5V +/- 5% |
Current Consumption | : Operating :- < 350 mA (Max) |
: Stand By :- < 160 mA (Max) |
Operating Temperature | : 0 to 50 °C |
Operating Humidity | : 10-90% RH, Non-Condensing |
ESD Protection | : +/-4kV (Contact Discharge), +/-8kV (Air Discharge) |
Device Dimension | : 185 x 145 x 62 mm |
Device Weight | : 0.41Kg |
Platform
Parameters | Specification |
Operating System | : Windows x86 and x64, Linux |
Certifications
Parameters | Specification |
Biometric Data Interchange Format | : ISO 19794-6 for IRIS Image, ISO 29794-6 for image quality |
EMI / EMC Compliance | : CE & FCC Part 15B Class B* |
Environmental, Health and Safety | : RoHS* |
Safety | : Exempt Group per IEC 62471:2006-07, IS13252 (Part 1)* |
Ingress Protection Rating | : IP65* |
Device Driver | : WHQL Certified |
