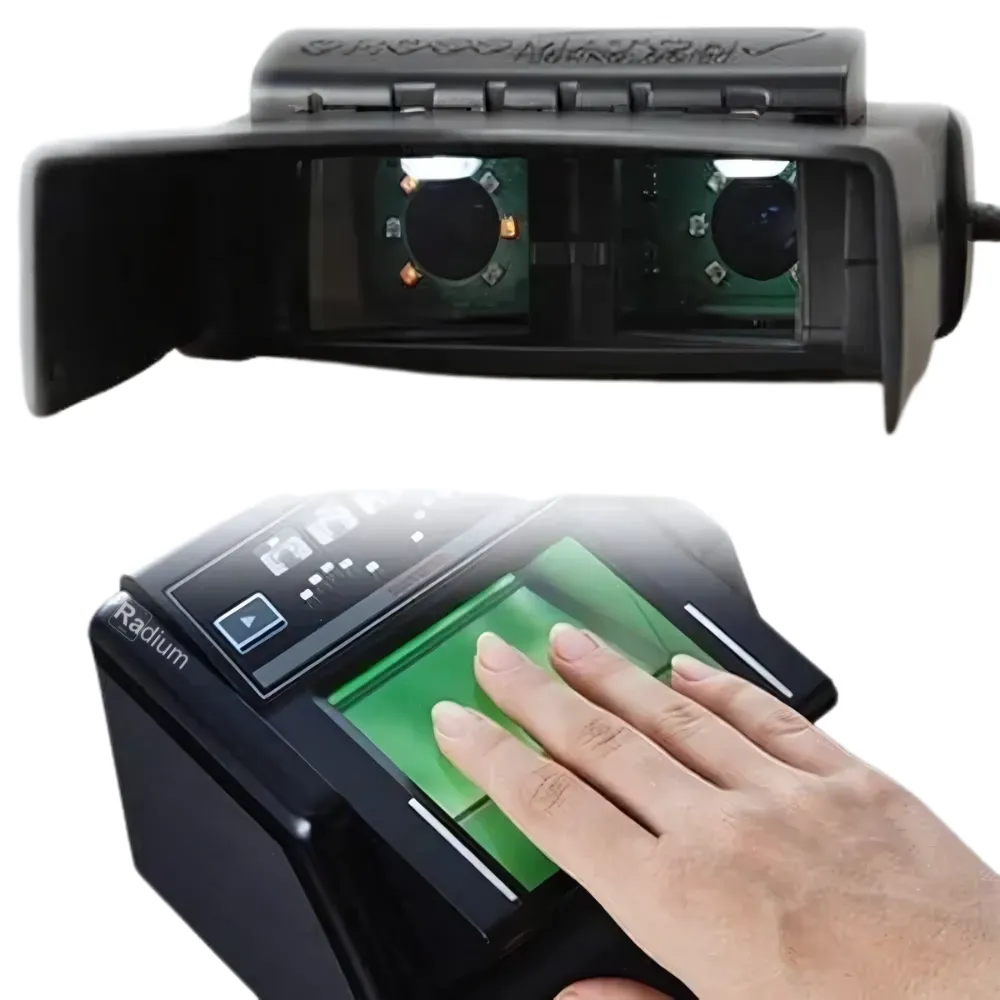

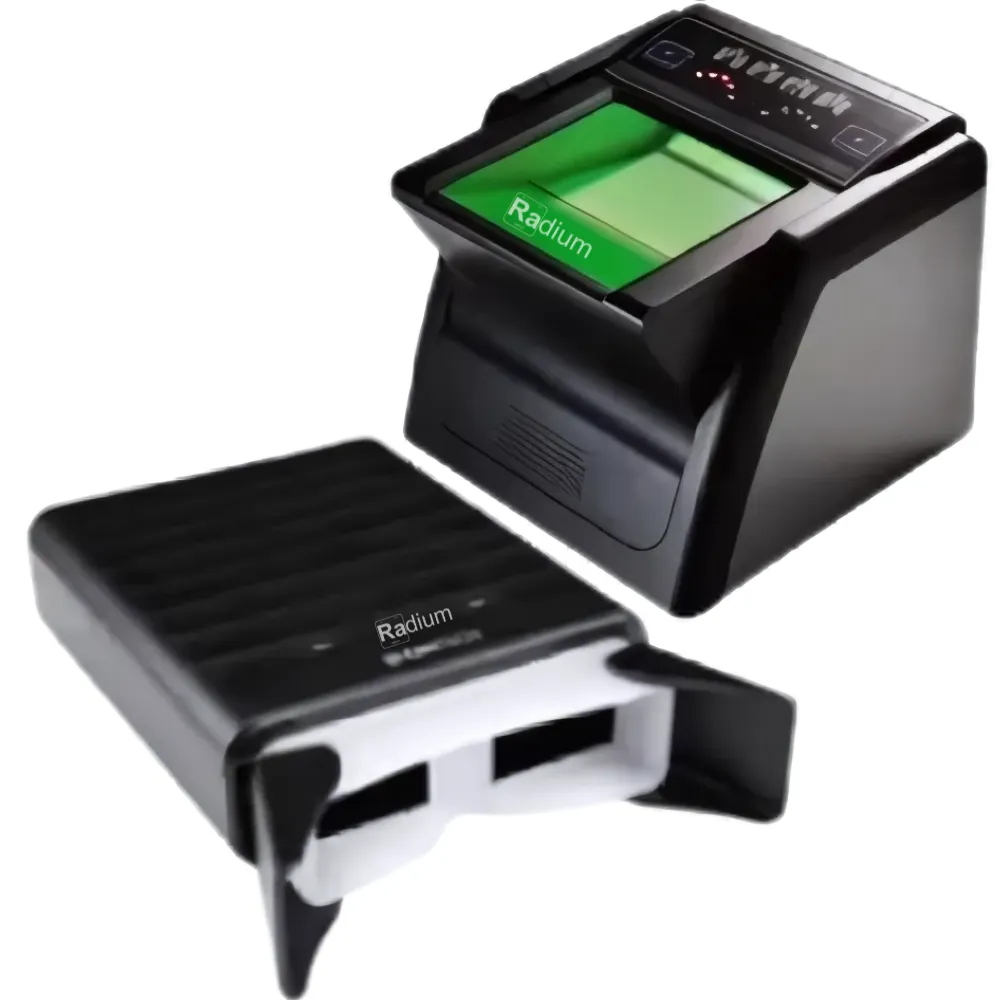

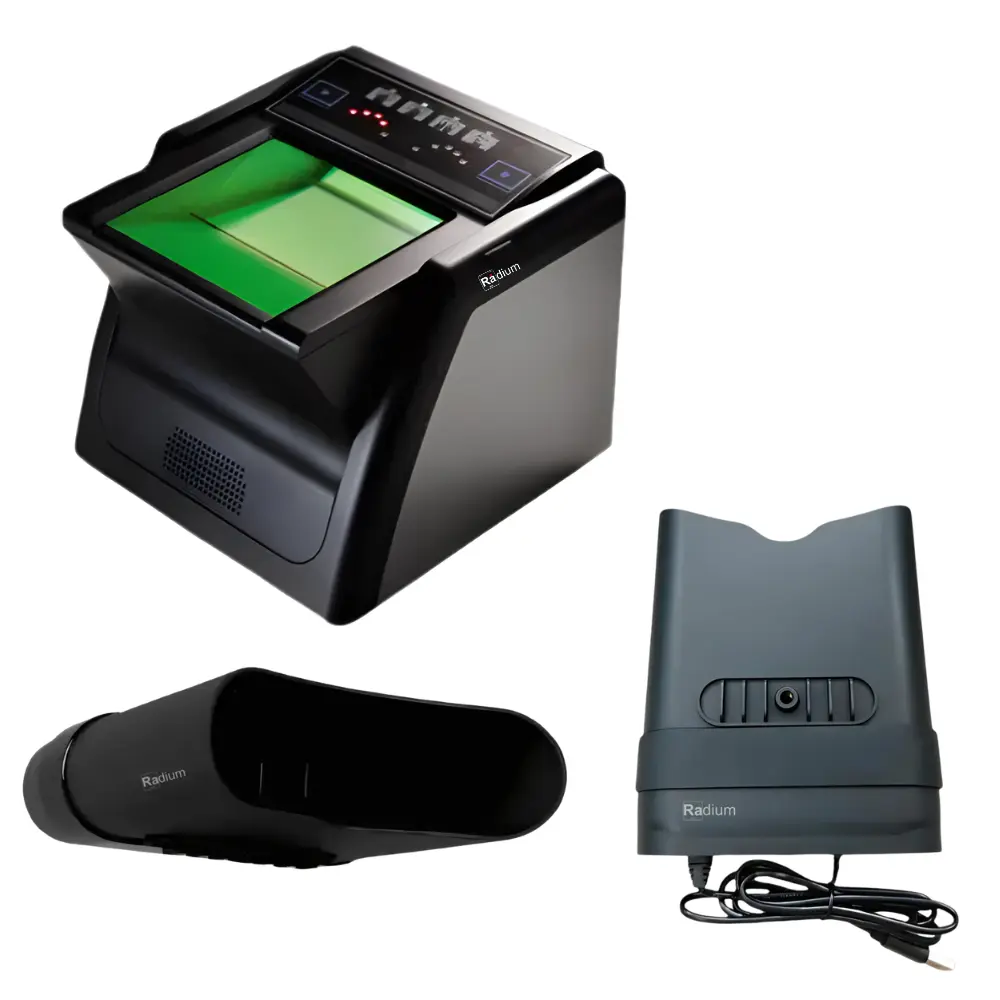

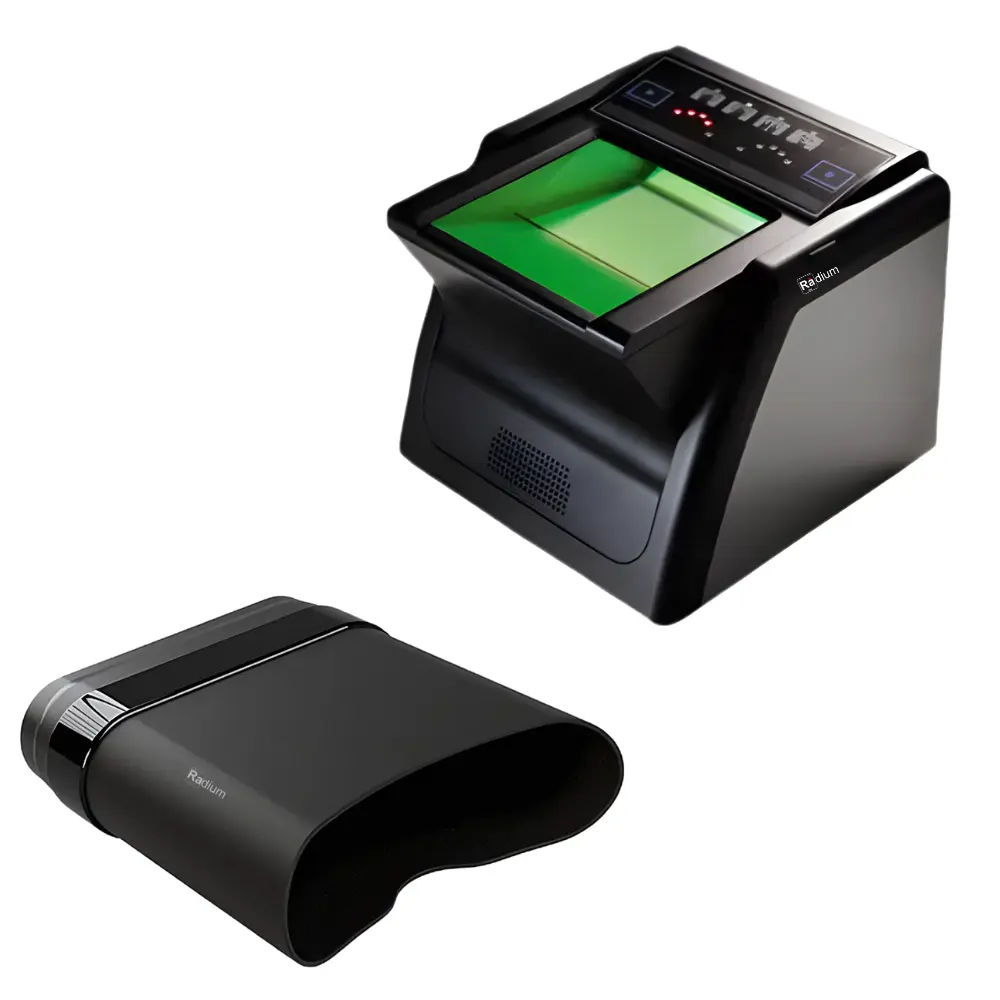

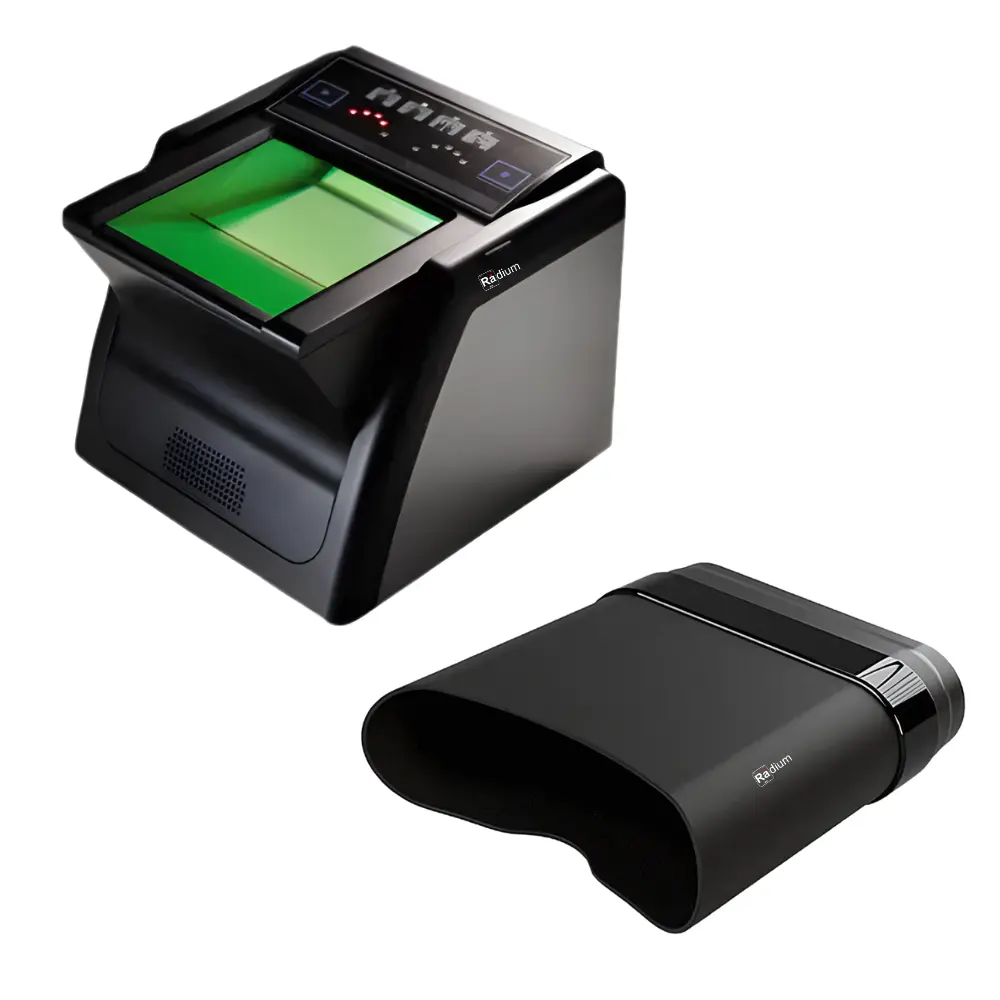

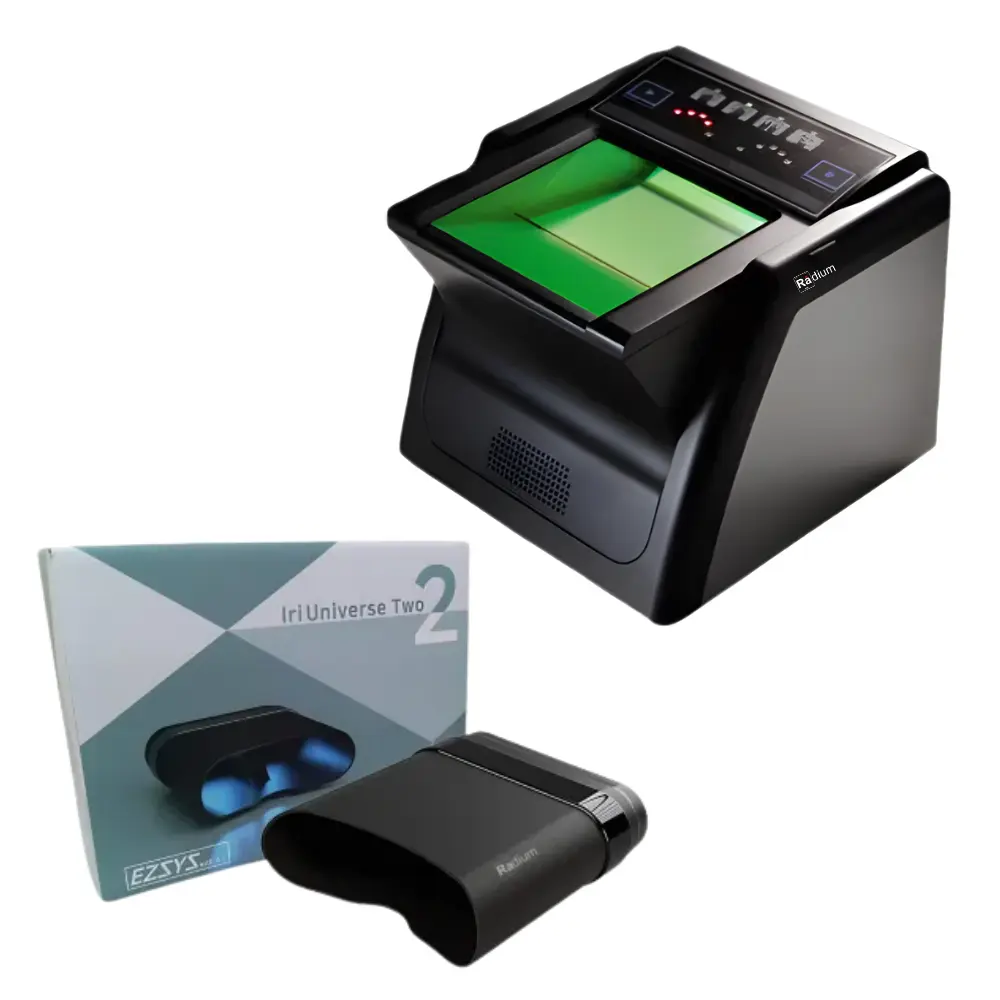

Suprema RealScan-G10 Slap Fingerprint and IrisUniverse Two Dual Iris Scanner for Aadhaar

The Suprema RealScan-G10 is a new fingerprint scanner optimized for fast and accurate biometric identification.

This new, high-performance fingerprint scanner is officially certified by the FBI and offers a clear image of the subject’s fingerprint as well as the best security and performance. It can detect single fingers, slaps, both thumbs at the same time, so it is suitable for civil identification, police force, and other security systems, access or ID control systems.

RealScan-G10 uses an optical scratch free sensor that will produce a fingerprint image at 500 dot per inch DPI. This helps to ensure that the images being produced are of high quality to suit an identification process. It measures 3.5 x 3.5 inches the platen which makes it convenient for capturing four-finger slaps as well as dual thumbs in a single scan. It also has the capability to capture single flat and rolled fingerprints, which makes it versatile to use.

Built with a lot of focus on durability the RealScan-G10 has an IP54 rating for dust and water resistance. This is complemented by an anti-shock and anti-vibration inner structure that makes the device to perform at optimum just as expected despite the terrain. There are additional features include in the scanner like fingerprint capture, slippage, etc., which makes the scanner more useful and secure. The Suprema RealScan-G10 is most suitable for Aadhaar enrolment, criminal identification, background check, airport border control, e-passport and national ID card authenticity. Thus, it becomes an ideal solution to implement each governmental project that roughens citizen identification.

In addition to the RealScan-G10, the CMI Tech BMT20 is another portable biometric device which is equally developed to capture high quality images of the iris. This dual iris scanner is as responsive to subject positioning as the previous one with no detailed instructions for the subjects to follow. It employs positioning feedback LEDs that come with it and which assist the users in the scanning process. The BMT20 is beneficial for any enrollment programs, even those comprising children or toddlers. Due to its compatibility of capturing clear iris biometric images at the same time, it can complement the RealScan-G10 in full biometric recognition systems.

In combination with Suprema RealScan-G10, CMI Tech BMT20 presents the best solution to achieve higher levels of security and fewer bureaucratic barriers in various applications. This combination of both fingerprint and the iris scan technology is very useful in civil registration projects as well as in cases of law enforcement. Both devices are intended to satisfy the requirements for contemporary Bio applications while being user friendly and compatible with various networks. Altogether, both are ideal for organizations that require end to end identity verification solutions which encompass facial recognition, iris scan and fingerprints among others. Suprema RealScan-G10 integrated with CMI Tech BMT20 is a perfect solution for biometric identification in Aadhaar projects and in any other fields where accuracy and effectiveness of each scan are critical.

Suprema RealScan-G10 Slap Fingerprint Scanner and CMI Tech BMT20 Dual Iris Scanner is available at the lowest price in India, you can buy it from Radium Box at the lowest price. In case of installation issues or any other concerns with the product, kindly call at our toll free no. +91 84343 84343 or email us at [email protected]. Feel free to contact our customer support team, they are  ready to help you in getting the most out of your biometric solutions.

Specification

• Product

  • Brand: Suprema

  • Model Number: RealScan-G10 / BMT20

  • Warranty: 1 Year

  • Origin: Made in India

  • Manufactured by: Suprema / CMI Tech

• OS Support & System Requirements

  • OS Support: Windows, Android

• Images & Fingerprint Capture

  • Suprema RealScan-G10

    • Sensor Type: Optical Scratch Free Sensor

    • Resolution: 500 DPI

    • Grayscale: 256 (8-Bit Gray Level)

    • Image Size: 296 x 354 Pixels (for fingerprint capture)

    • Supported Image Formats: ISO 19794-2 for minutiae, ISO 19794-4 for image template

    • FBI / Image Certifications: FBI PIV compliant, STQC certified

    • Speed/API Interface: Capture speed of 4+4+2 in 15 seconds; supports both 1:1 and 1:N matching modes.

    • Quality Scoring: Built-in quality check incorporating NIST quality considerations

• CMI Tech BMT20

  • Sensor Type: Dual Iris Scanner

  • Camera: High-resolution camera for iris capture

  • Resolution: Exceeds 4.0 lp/mm @ > 60% contrast for iris images

  • Image Size: 640 x 480 pixels (for iris capture)

• Weight & Dimensions

  • Suprema RealScan-G10

    • Product Weight: Approx. 680 g (1.5 lbs)

    • Platen Size: 89 x 80 mm (3.5” x 3.15”)

    • Sensing Area: Active sensing area of 81.28 x 76.2 mm (W x L)

• CMI Tech BMT20

  • Dimensions (W x D x H) : 219 x 161 x 58 mm (8.6 x 6.3 x 2.3 inches)

  • Weight : 680 g (1.5 lbs)

• Power & Connectors

  • Suprema RealScan-G10

    • Interface: USB 2.0 High Speed (Data & Power supply)

    • Connector Type: USB Type A or equivalent for connection to devices

    • Power Source: USB Powered Device (5V +/- 5%)

• CMI Tech BMT20

  • Power Source: USB BUS Power

• Confirmance & Certifications

  • Suprema RealScan-G10

    • USB Certification: Yes, WHQL certified device driver

    • USB-IF compatibility: Yes

    • FCC/CE/UKCA Conformance: CE & FCC Class A compliance

    • Air Discharge / Contact Discharge: Contact Discharge: +/- 4kV, Air Discharge: +/- 8kV

    • Equipment Safety: IEC60950 compliant

    • Hazardous Material: RoHS certified

• CMI Tech BMT20

  • Certifications: STQC Certified, CE, FCC compliant

• Compliance/Certifications

  • Suprema RealScan-G10

    • Fingerprint Template Output Formats: ISO standards for biometric data interchange

• Temperature & Humidity

  • Suprema RealScan-G10

    • Operating Temperature Range: 0°C to +50°C

    • Humidity (Operating / Storage): < 90% RH, non-condensing

• CMI Tech BMT20

  • Operating Temperature: 0°C to +50°C

  • Humidity: 10% to 90% RH, non-condensing

• Surface & Systems

  • Suprema RealScan-G10

    • Ingress Protection / Water / Dust Rating: IP54 rated for dust and water resistance

    • Surface Durability: Anti-shock and anti-vibration structure with rubber in-mold housing

• CMI Tech BMT20

  • Ingress Protection Rating: IP64

• Compliance & Regulations

  • Suprema RealScan-G10

    • FCC: Yes

  • CMI Tech BMT20

    • FCC: Yes

Features

• STQC Certified: Ensures compliance with stringent quality standards.

• Convenient Design: Fitted with mirrors & dual LED indicators for convenience purposes.

• Industrial Grade Quality: Surpasses ISO/IEC 19794-6 standards

• High-speed Processing: In-built image processor allows fast processing

• USB 2.0 Powered: Easy connectivity and power management

• Superior Spatial Resolution: Above 4.0 lp/mm and contrast above 60%

• Pixel & Iris Resolution: 18.4-20 pixels/mm; iris image resolution of 640 x 480 pixels

• Optimized Capture Distance: 0-10mm from forehead; optical path 350-380mm.

• Interpupillary Range: Measures distances between 40-90mm.

• Fast Capture: Captures iris images in the time of around one second.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
