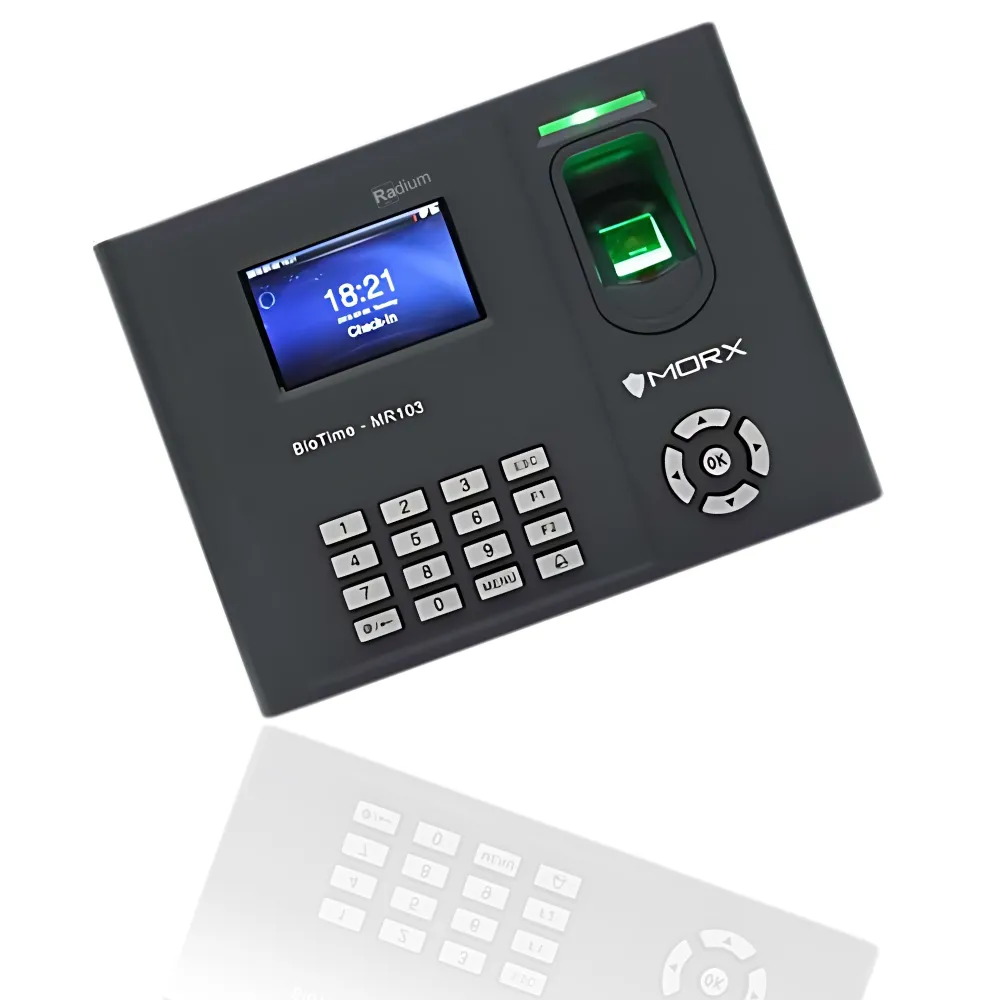

MORX BIOTIME MR103

Biotime MR-103 is a 3-inch all-around fingerprint access control device that aims to change all the security standards and attendance systems used by companies. This biometric attendance system comes with simple functions so that users can perform those complex things without interacting and giving maximum efficiency.

However, the most important feature MR-103 offers is TCP compatibility, which connects the device to other systems. This means the device can easily connect to the web to transfer and track real-time data while in use. It also has a built-in battery to ensure that the device continues to work especially when the power goes out.

The BioTime MR-103 has a keypad that once programmed, the user can reduce functions and punch in and out of work very easily. More interaction is gained for the entire system. Like the users of various systems, the MR-103 can be used for those who would look for an affordable machine that will be able to do many different things.

This biometric attendance scanner holds fingerprints up to 10,000 capacities and other identification cards. This device can handle a maximum number of 10,000 users and is best suited for medium to large organizations. It can also record up to 100,000 fingerprints that can be convenient for businesses. It can record event participation details in detail with accuracy at any given time.

The size of the device is quite small, measuring 221.7 x 159.5 x 42.9 mm. Therefore it can work with full efficiency in areas with humidity less than or equal to 80% and temperatures less than or equal to 45°C and greater than or equal to 0°C. Suitable for use in various conditions.

For those who need help or are unsure about how to install this application. Our customer service team can help you answer any questions. Email us your issues, and concerns to [email protected] or call us at our toll free number : +91 84343 84343. We are committed to providing you with assistance to ensure your BioTime MR -103 runs smoothly.

Specification

• Product Overview

• Brand: MORX

• Model: BioTime MR103

• Warranty: 1 year

• Origin: India

• Manufactured by: Mantra Softech Pvt. Ltd

• Key Specifications

• Fingerprint Capacity: 10,000

• ID Card Capacity: 10,000 (Proximity card; Optional: Mifare/HID)

• Record Capacity: 100,000

• Display and Communication

• Display Size: 3-inch TFT Screen

• Communication Interfaces:

• TCP/IP

• USB Host & Client

• Optional: Wi-Fi, GPRS

• Access Control Features

• Access Control Interface:

• Electric Lock

• Door Sensor

• Exit Button

• Alarm

• Door Bell

• Connection Interfaces

• Connection Interface Types:

• RS232

• RS485

• Wiegand Input & Output (26/34 bit)

• Power Requirements

• Power Supply: DC 12V, 3A

• Battery Backup: Optional

• Software Compatibility

• Compatible Software: PayTime / Minop

• Environmental Conditions

• Operating Temperature Range: 0°C to 45°C

• Operating Humidity Range: 20% to 80%

• Physical Characteristics

• Dimensions: 221.7 x 159.5 x 42.9 mm

• Certification: CE, FCC, RoHS

Key Features

• Web Server: Allows access to the system through a web-based interface.

• Work Codes: Allows the system to process and manage work codes for various jobs and operations.

• SMS Notifications: Provides the ability to send messages to users and admins to receive notifications.

• Daylight saving time (DST): Automatically updates the system to reflect changes in daylight hours. Ensures accurate timing and scheduling.

• Scheduled Notifications: Enabling scheduling of hourly notifications at a specific date and time. Enable notifications and notification at scheduled times.

• Self-service search function: Allows retrieval and inquiry on the user's information through the system.

• Automatic state switch: Enables automatic switching of states such as online/offline. or enable/disable when needed

• Photo ID capability: Allows user authentication using photo ID, which makes it more secure and authenticated.

Note: Before using the device, please check the app specifications to ensure compatibility. All government-based project apps support this device.
