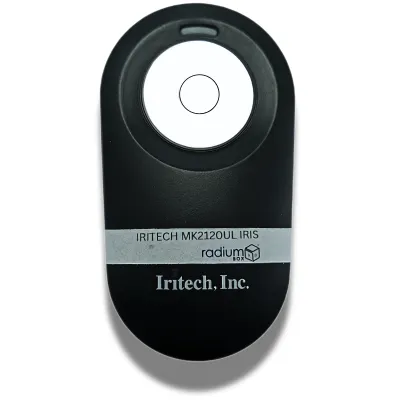

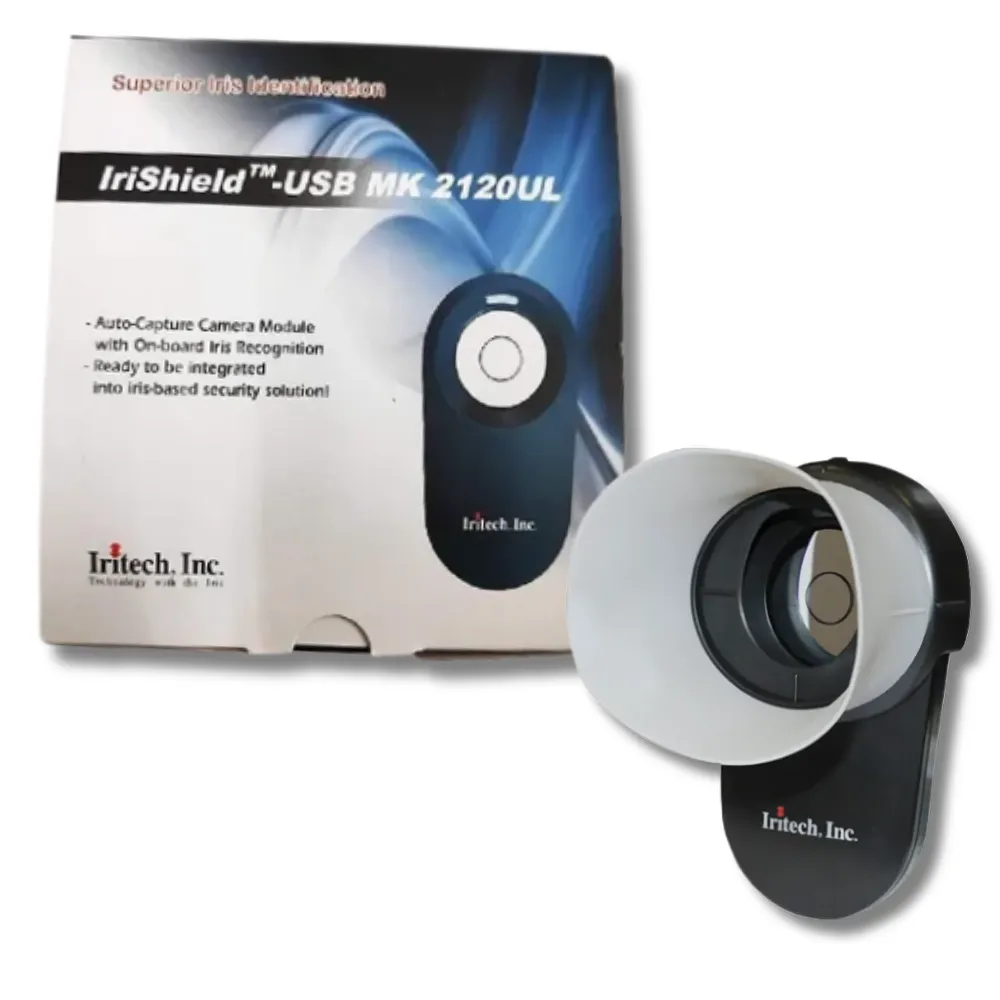

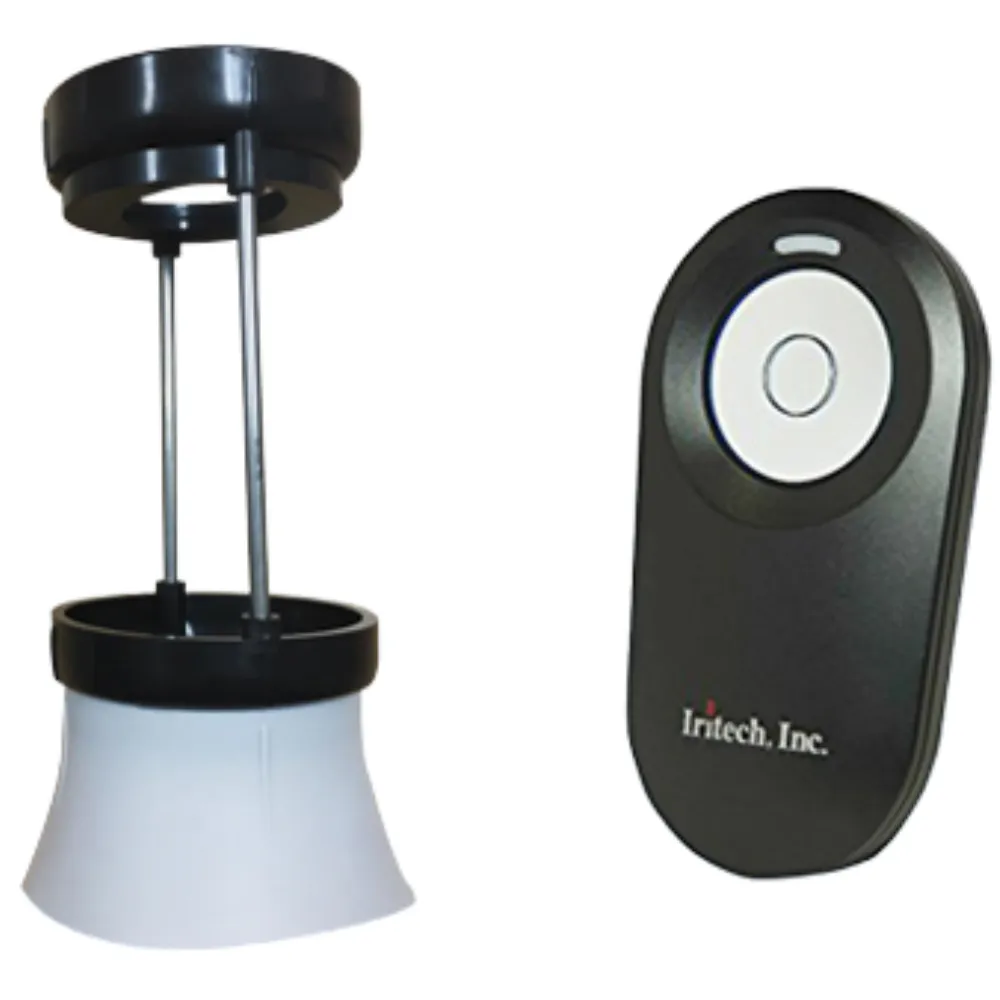

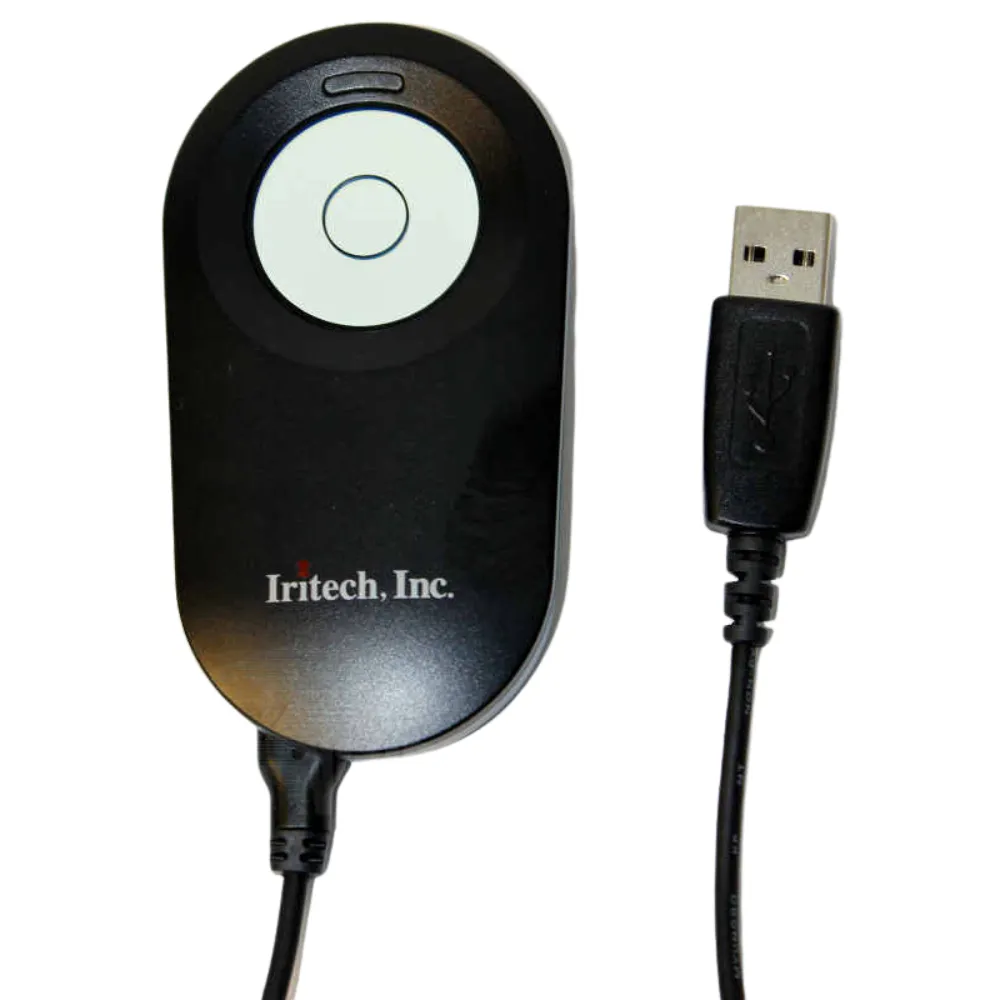

The IriTech IriShield MK2120UL / MK2120U single USB iris scanner is a high-performance biometric device that is suitable for identification and secure applications. It has an intelligent auto-capture camera module and a biometric login capability through local iris scan. These requirements ensure that STQC certification and compliance with international standards are safe to use. It can be easily interfaced with different iris based security systems. The device can be employed in banking industries, Government agencies and identity verification. The size and overall simple design make it more secure and easier to use. Supports unintermittent operation within the spheres which need trustworthy biometric identification.
Brand Name
Models:
Quantity:
Total Price:
₹ 7999.00
EMIs Available On min. Purchase of Rs. 3000 across banks
Looking to purchase Iritech Irishield MK2120UL Single USB Iris Scanner in bulk quantity?
Description
Reviews
Technical Specification
Hardware Specification
Faq's
Availability: In Stock | 🚚 Fast Delivery Across India
✅ Key Points
IRIECH IriShield MK2120UL Single USB Iris Scanner uses top-level technology to secure and efficiently operate Aadhaar authentication. This ultra-compact, economic iris scanner embeds an excellent algorithm in iris image quality assessment to guarantee high accuracy in positive identification and reduce the false positive rate. The IriShield MK2120UL is lightweight in design, supports power management functions, and is thus ideal to cater to a wider range of applications such as Ayushman Bharat, NTR Bharosa Pension Scheme, Jeevan Pramaan, and PMG-DISHA/DIGIPAY. The IriShield MK2120UL by Iritech stands out for its complete data security due to its PKI-based security infrastructure. Each device securely generates an RSA key of 2048 bits independently on-board for encryption and digital signature, further securing sensitive information. Such a high level of security is augmented by the fact that the scanner follows standards set by RoHS, ISO, and IECEE. Iritech provides a FREE Software Development Kit for developers who wish to utilize the IriShield MK2120UL with their projects. Using this software, it is pretty easy to integrate and customize for various programs; hence, it makes it easy to employ iris biometric solutions. Users can download the drivers called irishield-usb mk2120ul for Windows 10 operating system from the official site when the device should be in trouble-free working condition. The Iritech IriShield captures from a distance of 15 cm using the scanner easily, which is compact in size, lightweight and easily transportable. The IriShield USB MK2120UL operates based on a comprehensive manual given by Iritech-IRISHIELD MK2120UL-that provides detailed instructions for installation, configuration, and troubleshooting.
|
Specification |
Details |
|
OS Support |
Windows, Android |
|
Key Functionalities |
On-board Template Generation, 1:1 & 1:N Matching, On-board PKI Security |
|
Memory |
64 MB NAND Flash, 128 MB Mobile DDR SDRAM |
|
Sensor Type |
Single Iris Sensor |
|
Capture Mode |
Auto Capture with Quality Check (NIST IQCE, ISO 29794-6) |
|
Capturing Distance |
15 cm (5.91 in) |
|
Resolution |
VGA |
|
Illumination |
Infrared LED |
|
Grayscale |
8-bit |
|
Image Size |
640 x 480 pixels |
|
Image Formats |
ISO 19794-6 (K1, K2, K3, K7 Max Supported) |
|
Scan Type |
Progressive |
|
SNR |
≥ 37 dB |
|
Certifications |
STQC Certified |
|
Pixel Density |
> 210 pixels across iris diameter |
|
Quality Scoring |
NIST-proven Iris Image Quality Assessment Algorithm |
|
Dimensions |
51.2 mm x 92.6 mm x 15.1 mm |
|
Weight |
Not specified |
|
Spatial Resolution |
≥ 60% @ 4.0 Lp/mm |
|
Pixel Resolution |
≥ 16 pixels/mm |
|
Radiant Intensity |
0.2 mW/cm² (700–900 nm) |
|
Interface |
USB 2.0 |
|
Connector Type |
USB |
|
Power Source |
USB Powered (DC +5V ± 5%) |
|
Max Power Consumption |
300 mA |
|
USB Certification |
Yes |
|
FCC/CE/UKCA Conformance |
FCC Class B |
|
Eye Safety Standard |
IEC 62471:2006-07 |
|
RoHS Compliance |
Yes |
|
Security |
RSA (2048-bit), AES (256-bit), X.509, PFX/PKCS#12, On-board RSA key pair |
|
Operating Temperature |
0°C to +50°C |
|
Storage Temperature |
-20°C to +60°C |
|
Humidity |
10% to 90% (non-condensing) |
|
Ingress Protection |
IP54 Rated |
|
FCC Certification |
Yes (Class B) |
📦 What’s in the Box?
✅Secure Data & Communication: Each IriShield device is equipped with a unique 2048-bit RSA key that is securely generated on-board for encryption and digital signatures.
✅Highly Accurate Iris Matching: Utilizes a NIST-proven iris matching algorithm known for its exceptional accuracy.
✅STQC Certified: Certified as an authentication device by the Standardization Testing and Quality Certification (STQC) authority.
✅Tamper-Proof Design: Built to prevent unauthorized access and tampering, ensuring the integrity of the device.
✅Versatile Interface Connections: Supports USB connections for easy integration with various systems.
✅Operating System Compatibility: Compatible with a range of operating systems, including Android, Windows, WinCE, Linux, eLinux, Mac, and proprietary or non-OS environments.
🎯 Ideal Use Cases
The IriShield MK 2120U comes with RD Service pre-included, fully compliant with UIDAI requirements. Our support team provides complete guidance to help you configure and activate the device across supported platforms. You can buy the Iritech Irishield MK2120UL Single USB Iris Scanner for Aadhaar authentication at the best price in India from Radium Box. To download the latest IriShield MK2120UL driver you can click here or visit our Download page. For support, installation and other related queries call us at our toll free number +918434384343 or email us at: support@radiumbox.com .Our customer service team is dedicated to help and provide you with immediate solutions.
